TEBCOAT FG-NR-45

BLUE NATURAL RUBBER HIGH ABRASION FEEDER BELTS

To Suit - Bobst - Jagenberg  - Tanabe - Vega and other Folder Gluer machines

A full range of Natural - CR & NBR rubber coverings are also available,

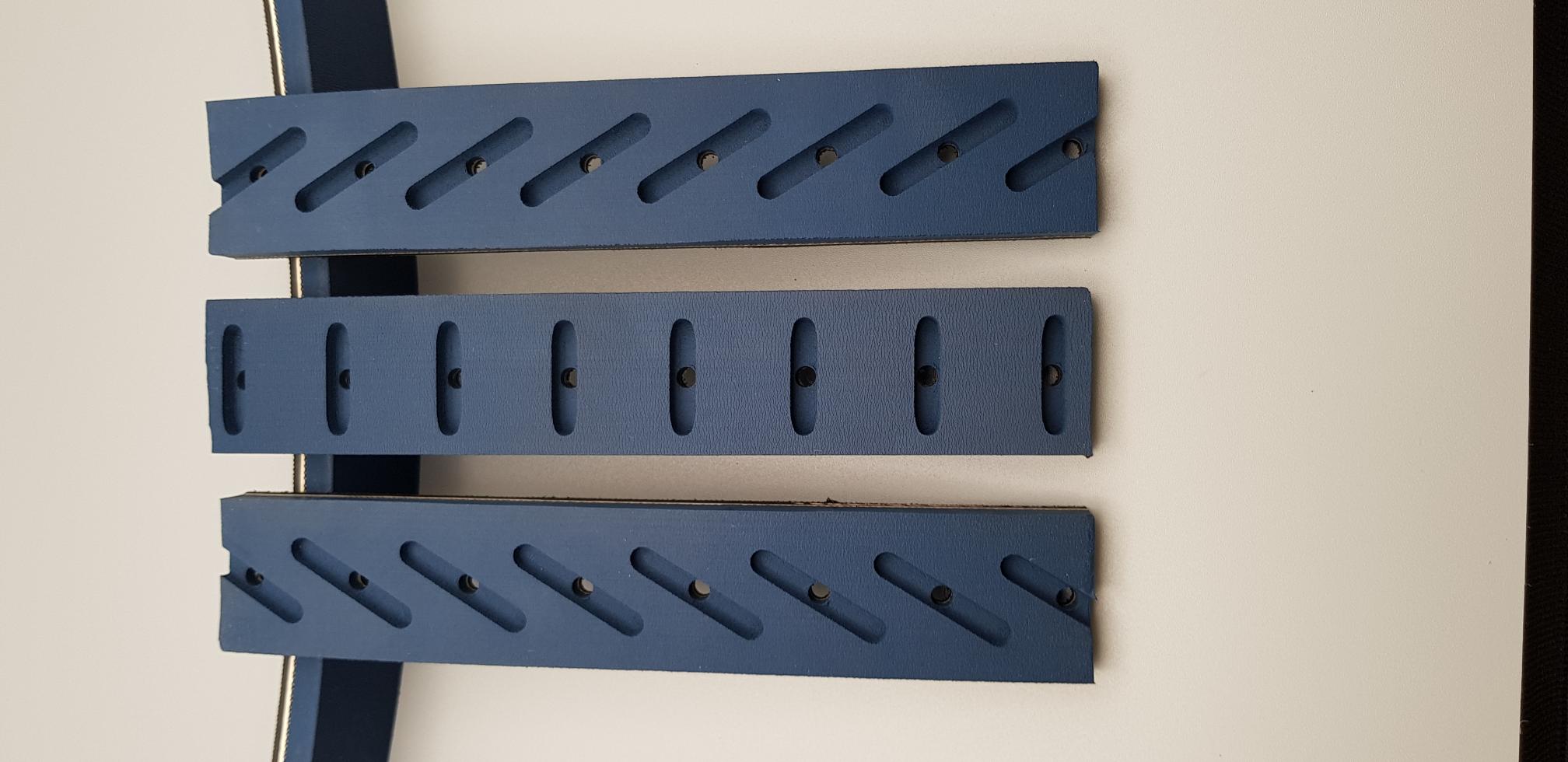

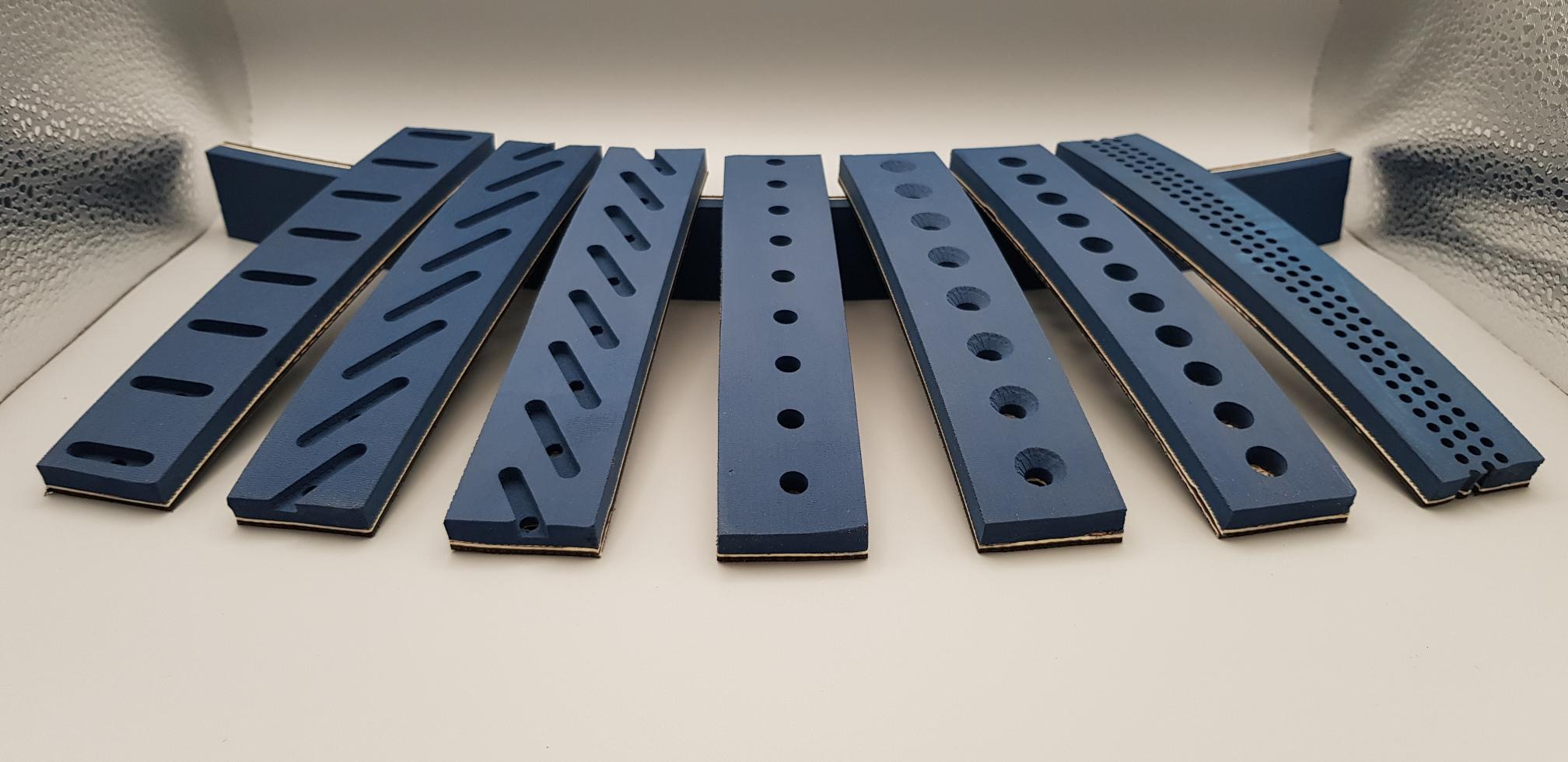

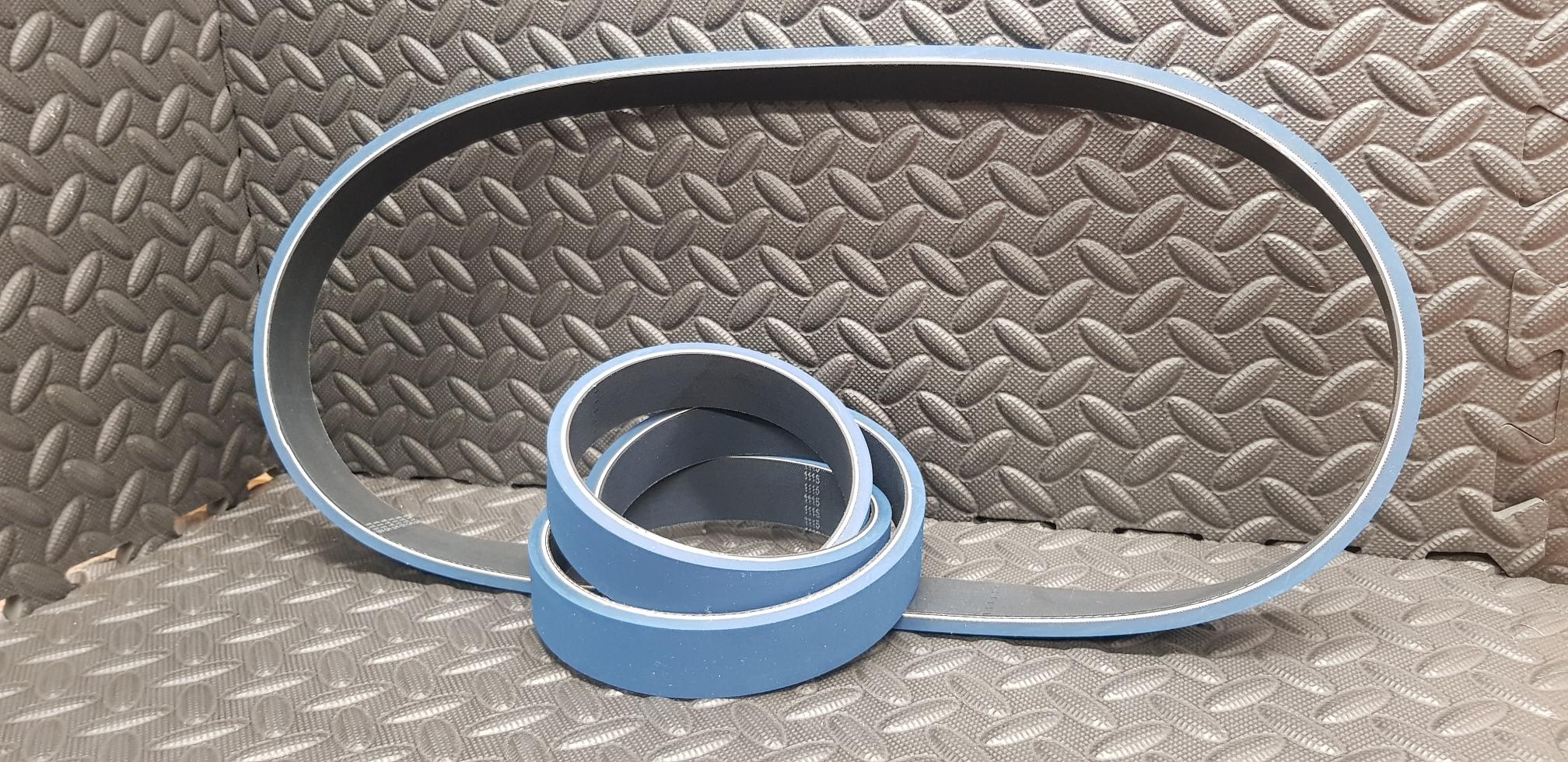

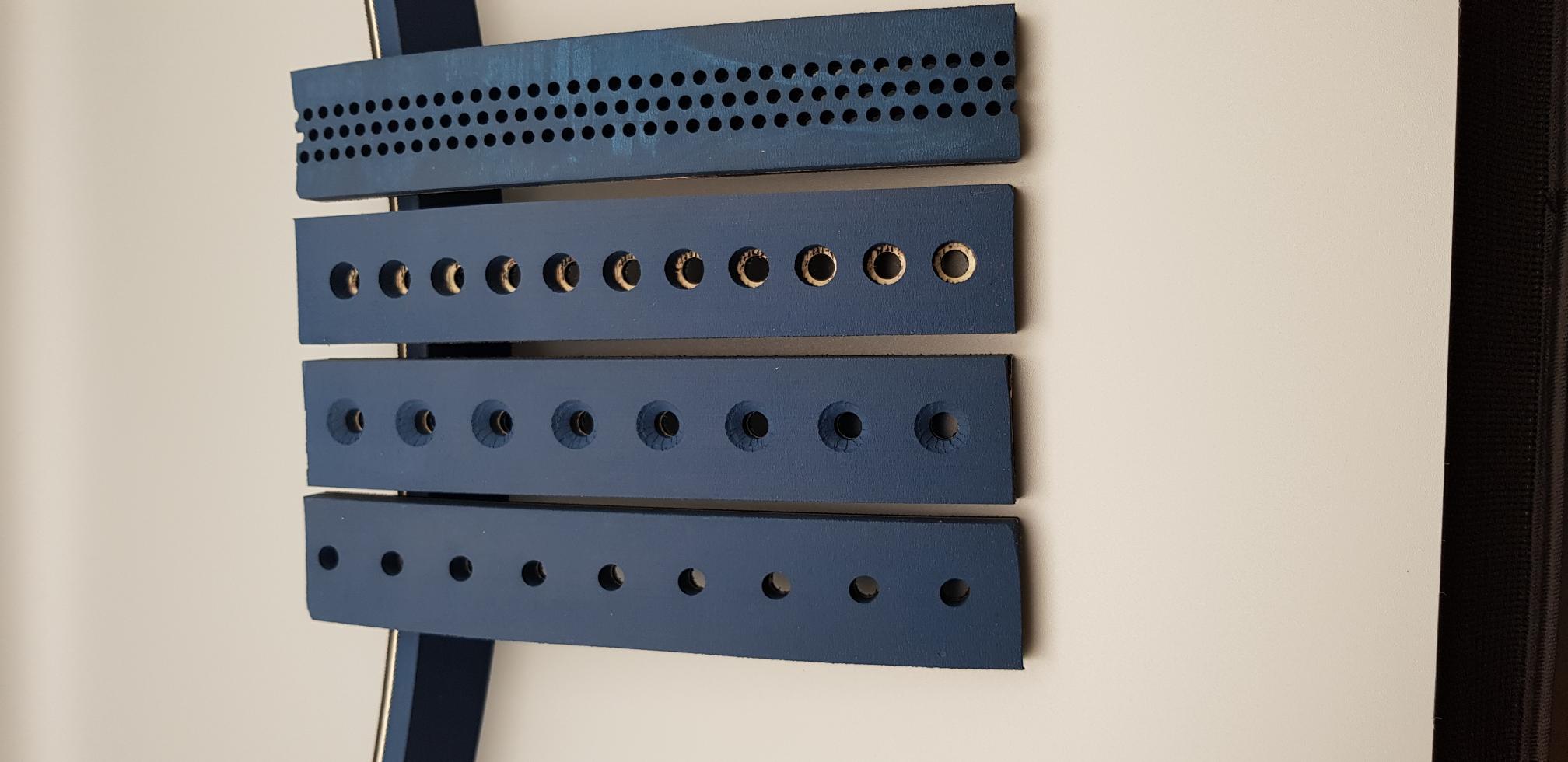

Feeder / Feeder Folder Gluer belts are truly endless high performance belts, suitable for punched holes and ground profiles

Top cover - Ground finish blue 45 Shore A natural rubber

Base - Polychloroprene rubber cloth - black - 80 shore A

Tension member - Polyester cord

Cord diameter - 0.65mm

Breaking force - 250N

Cable twist -Z- 142TPm

Adhesion to CR- 215N / 10mm

length - 300 - 2000mm

Width - 5 - 400mm

Thickness - 4 - 10mm

Minimum Pulley diameter - 10 times overall belt thickness

Operating Temperature - -10 to +60c

Maximum speed- 500M/Min
